IC VREF SERIES 0.2%/0.17% 8DIP

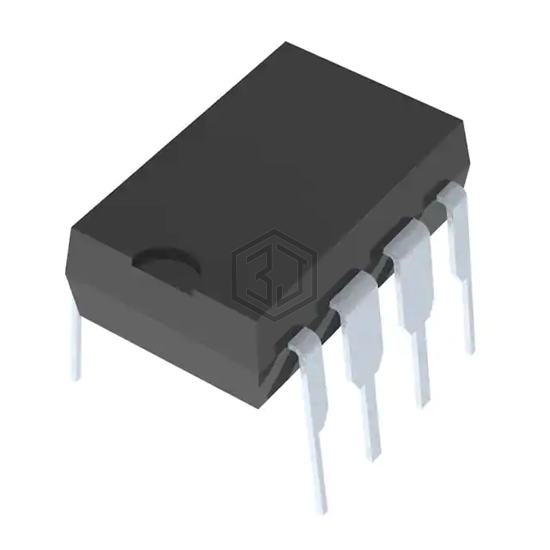

AD780AN is a PMIC - Voltage Reference manufactured by Analog Devices Inc.. IC VREF SERIES 0.2%/0.17% 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - input 4V ~ 36V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 270,191
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Reference Type | Series, Shunt |
| Output Type | Programmable |
| Voltage - Output (Min/Fixed) | ±2.5V, ±3V |
| Voltage - Output (Max) | - |
| Current - Output | 10 mA |
| Tolerance | ±0.2%, ±0.17% |
| Temperature Coefficient | 7ppm/°C |
| Noise - 0.1Hz to 10Hz | 4µVp-p |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | 4V ~ 36V |
| Current - Supply | 1mA |
| Current - Cathode | 1 mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
AD780AN is Obsolete. Consider these compatible alternatives:
Submit your RFQ for AD780AN and get a quote within 24 hours.
