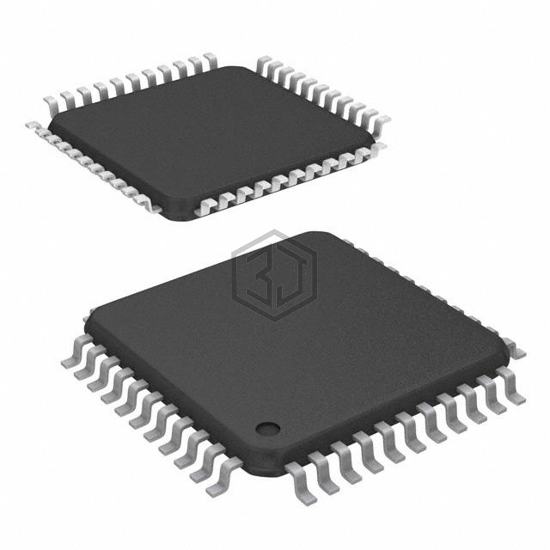

IC DAC 10BIT V-OUT 44TQFP
AD7809BSTZ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 10BIT V-OUT 44TQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3V ~ 5.5V, package / case 44-TQFP.
In Stock: 1,488
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 10 |
| Number of D/A Converters | 8 |
| Settling Time | 4µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 5.5V |
| Voltage - Supply, Digital | 3V ~ 5.5V |
| INL/DNL (LSB) | ±4 (Max), ±0.125 |
| Architecture | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 44-TQFP |
| Supplier Device Package | 44-TQFP (10x10) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7808BRZ | Analog Devices Inc. | IC DAC 10BIT V-OUT 24SOIC | 100% | View |
| LTC2636IDE-LMI10#PBF | Analog Devices Inc. | IC DAC 10BIT V-OUT 14DFN | 98% | View |
| LTC2636HMS-LZ10#TRPBF | Analog Devices Inc. | IC DAC 10BIT V-OUT 16MSOP | 98% | View |
| LTC2636HMS-LMX10#TRPBF | Analog Devices Inc. | IC DAC 10BIT V-OUT 16MSOP | 98% | View |
| LTC2636IMS-LZ10#PBF | Analog Devices Inc. | IC DAC 10BIT V-OUT 16MSOP | 98% | View |
| LTC2636IDE-LZ10#PBF | Analog Devices Inc. | IC DAC 10BIT V-OUT 14DFN | 98% | View |
Submit your RFQ for AD7809BSTZ and get a quote within 24 hours.
