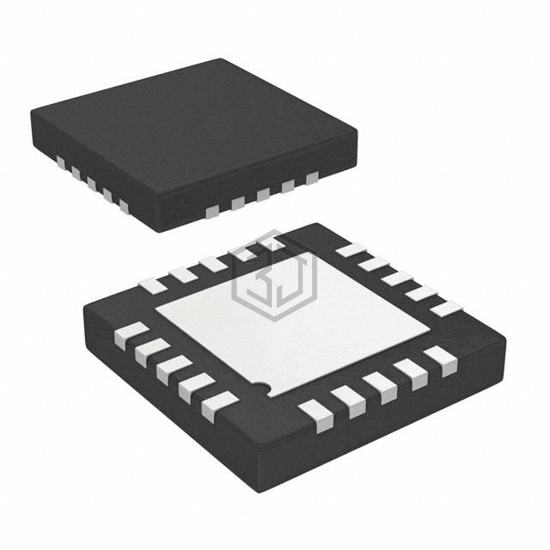

IC ADC 16BIT SAR 20LFCSP
AD7689BCPZ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 16BIT SAR 20LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.3V ~ 5.5V, package / case 20-WFQFN Exposed Pad, CSP.
In Stock: 3,094
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 8 |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.3V ~ 5.5V |
| Voltage - Supply, Digital | 2.3V ~ 5.5V |
| Features | Temperature Sensor |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP (4x4) |
| Mounting Type | Surface Mount |
