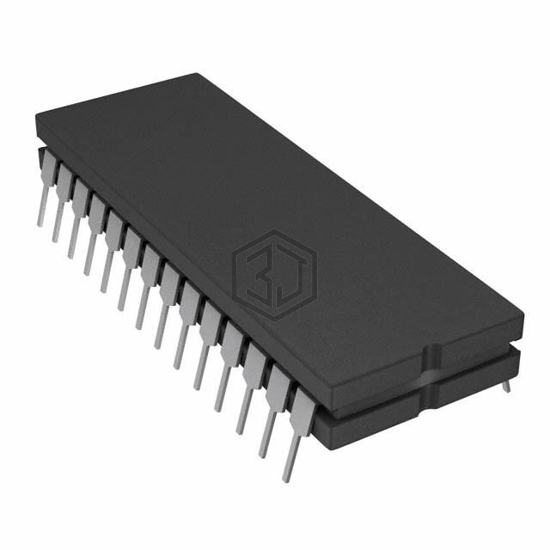

IC DAC 16BIT V-OUT 28CDIP
AD760AQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT V-OUT 28CDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 28-CDIP (0.600", 15.24mm).
In Stock: 3,328
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 13µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel, Serial |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±0.2, ±0.2 |
| Architecture | Current Steering, R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| Mounting Type | Through Hole |
AD760AQ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD660SQ | Analog Devices Inc. | IC DAC 16BIT V-OUT 24CDIP | 100% | View |
| AD660ANZ | Analog Devices Inc. | IC DAC 16BIT V-OUT 24DIP | 100% | View |
| AD660BNZ | Analog Devices Inc. | IC DAC 16BIT V-OUT 24DIP | 100% | View |
| AD669ANZ | Analog Devices Inc. | IC DAC 16BIT V-OUT 28DIP | 100% | View |
| AD669BNZ | Analog Devices Inc. | IC DAC 16BIT V-OUT 28DIP | 100% | View |
| AD669SQ/883B | Analog Devices Inc. | IC DAC 16BIT V-OUT 28CDIP | 99% | View |
Submit your RFQ for AD760AQ and get a quote within 24 hours.
