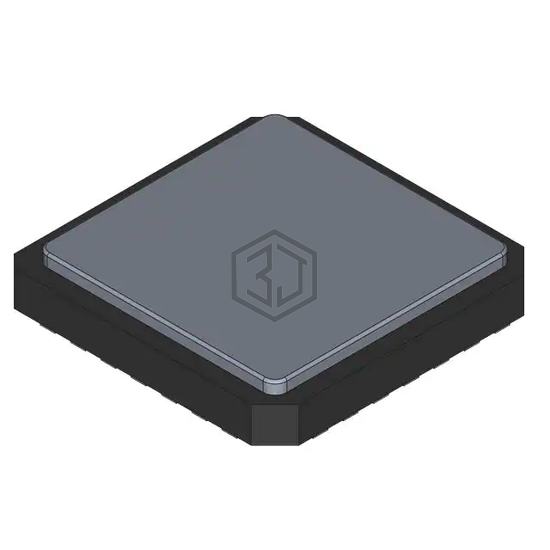

12-BIT SAR PARALLEL ADC
AD7572SE05 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. 12-BIT SAR PARALLEL ADC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply, digital 4.75V ~ 5.25V, -14.25V ~ -15.75V, package / case 28-CLCC.
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V, -14.25V ~ -15.75V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V, -14.25V ~ -15.75V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 28-CLCC |
| Supplier Device Package | 28-CLCC (11.43x11.43) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 5962-87591023X | Analog Devices Inc. | SAR, 12-BIT ADC (AD75TE12/883B) | 100% | View |
| 5962-87591013X | Analog Devices Inc. | 12-BIT ADC (AD7572SE) | 100% | View |
| 5962-87591043X | Analog Devices Inc. | IC ADC 12BIT SAR 28LCC | 99% | View |
| ADS5444MPFPEP | Texas Instruments | IC ADC 13BIT PIPELINED 80HTQFP | 98% | View |
| ADS5463MPFPEP | Texas Instruments | IC ADC 12BIT PIPELINED 80HTQFP | 89% | View |
| ADS5500MPAPEP | Texas Instruments | IC ADC 14BIT PIPELINED 64HTQFP | 87% | View |
Submit your RFQ for AD7572SE05 and get a quote within 24 hours.
