IC DAC 12BIT A-OUT 20CDIP

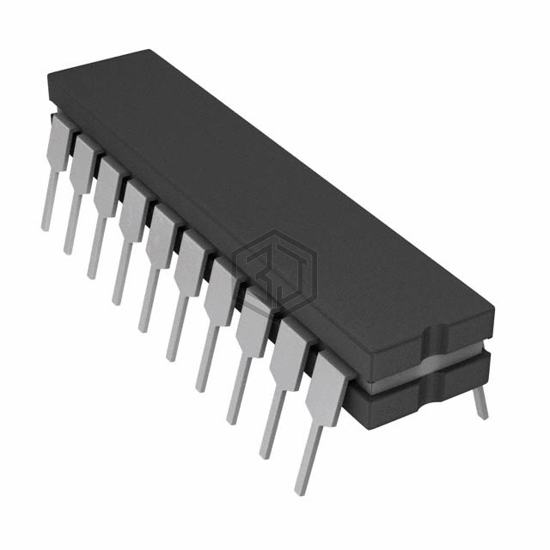

AD7549BQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT A-OUT 20CDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, digital 15V, package / case 20-CDIP (0.300", 7.62mm).
In Stock: 2,161
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 1.5µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 15V |
| Voltage - Supply, Digital | 15V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CERDIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7549JNZ | Analog Devices Inc. | IC DAC 12BIT A-OUT 20DIP | 100% | View |
| AD7547LNZ | Analog Devices Inc. | IC DAC 12BIT A-OUT 24DIP | 94% | View |
| 5962-8965702LA | Analog Devices Inc. | DUAL MARKED (AD7547TQ/883B) | 94% | View |
| AD7537KNZ | Analog Devices Inc. | IC DAC 12BIT A-OUT 24DIP | 94% | View |
| AD7537TQ | Analog Devices Inc. | 2 CH DAC, PARALLEL, 8 BITS INPUT | 94% | View |
| AD7537SQ/883B | Analog Devices Inc. | 2 CH DAC, PARALLEL, 8 BITS INPUT | 94% | View |
Submit your RFQ for AD7549BQ and get a quote within 24 hours.
