DAC, PARALLEL, WORD INPUT

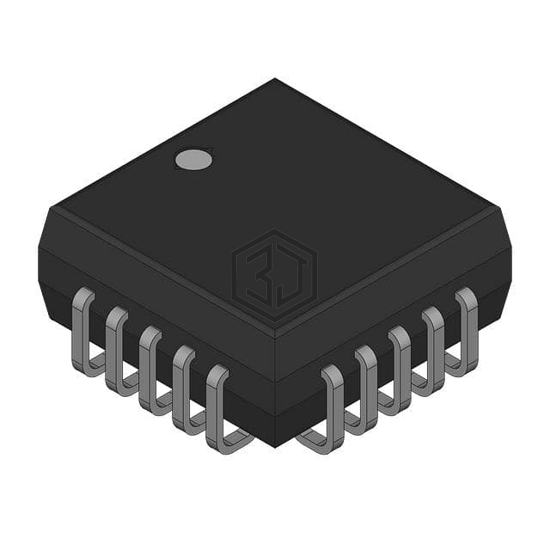

AD7545LP-REEL is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. DAC, PARALLEL, WORD INPUT. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 4.75V ~ 15.25V, package / case 20-LCC (J-Lead).
In Stock: 4,980
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 2µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 4.75V ~ 15.25V |
| Voltage - Supply, Digital | 4.75V ~ 15.25V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | Multiplying DAC, R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC1588IG#TRPBF | Analog Devices Inc. | IC DAC 12BIT A-OUT 16SSOP | 99% | View |
| AD7545LPZ-REEL | Analog Devices Inc. | IC DAC 12BIT A-OUT 20PLCC | 99% | View |
| AD7543SE | Analog Devices Inc. | DAC, SERIAL INPUT LOADING | 99% | View |
| LTC1589IG#TRPBF | Analog Devices Inc. | IC DAC 14BIT A-OUT 16SSOP | 98% | View |
| LTC2751IUHF-12#PBF | Analog Devices Inc. | IC DAC 12BIT A-OUT 38QFN | 89% | View |
| LTC2751AIUHF-16#PBF | Analog Devices Inc. | IC DAC 16BIT A-OUT 38QFN | 86% | View |
Submit your RFQ for AD7545LP-REEL and get a quote within 24 hours.
