IC DAC 12BIT A-OUT 20CDIP

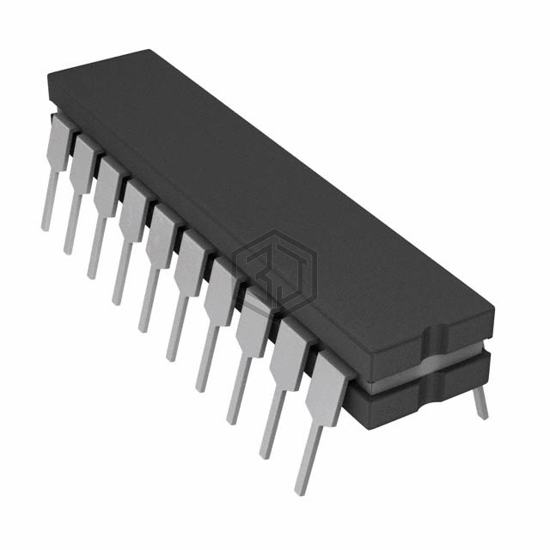

AD7545CQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT A-OUT 20CDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - supply, digital 5V ~ 15V, package / case 20-CDIP (0.300", 7.62mm).
In Stock: 2,468
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 2µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -25°C ~ 85°C |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CERDIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7545SD | Harris Corporation | BUFFERED MULTIPLYING DAC, 12-BIT | 100% | View |
| AD7542AQ | Analog Devices Inc. | IC DAC 12BIT A-OUT 16CDIP | 100% | View |
| AD7543GKNZ | Analog Devices Inc. | IC DAC 12BIT A-OUT 16DIP | 100% | View |
| AD7545BQ | Analog Devices Inc. | IC DAC 12BIT A-OUT 20CDIP | 100% | View |
| AD7543GBQ | Analog Devices Inc. | DAC, SERIAL INPUT LOADING | 100% | View |
| 5962-8876502RX | Analog Devices Inc. | IC DAC 12BIT LC2MOS DUAL 20CDIP | 66% | View |
Submit your RFQ for AD7545CQ and get a quote within 24 hours.
