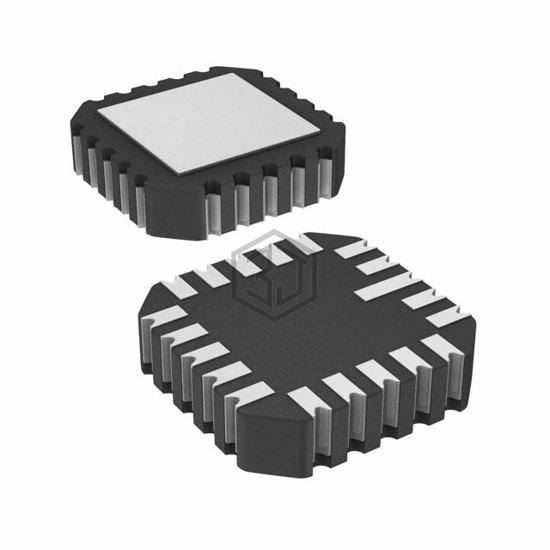

IC DAC 12BIT A-OUT 20LCCC
AD7543TE is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT A-OUT 20LCCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply, digital 5V, package / case 20-CLCC.
In Stock: 1,065
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 2µs |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Serial |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 20-CLCC |
| Supplier Device Package | 20-CLCC (9x9) |
| Mounting Type | Surface Mount |
AD7543TE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7543SE/883B | Analog Devices Inc. | DAC, SERIAL INPUT LOADING | 100% | View |
| AD7543SE | Analog Devices Inc. | DAC, SERIAL INPUT LOADING | 100% | View |
| 5962-89481032A | Analog Devices Inc. | 12-BIT DAC (PM7541AB) | 83% | View |
| AD7545AUE | Analog Devices Inc. | IC DAC 12BIT A-OUT 20LCCC | 83% | View |
| AD7545AUE/883B | Analog Devices Inc. | DAC, PARALLEL, WORD INPUT | 83% | View |
| 5962-87702042A | Analog Devices Inc. | 12-BIT BUFFERED, MULTIPLYING DAC | 83% | View |
Submit your RFQ for AD7543TE and get a quote within 24 hours.
