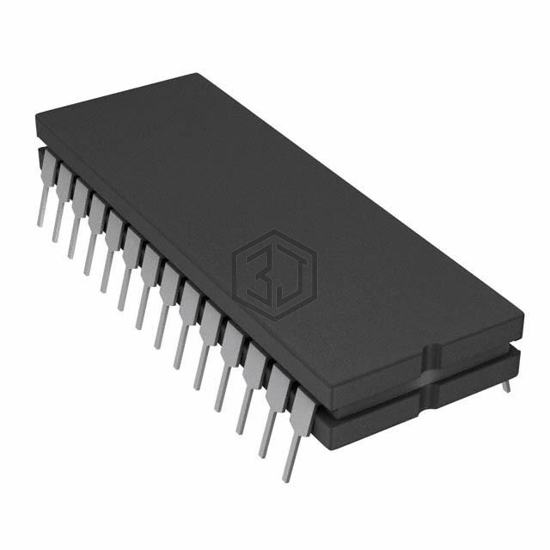

IC MULTIPLEXER 16X1 28CDIP
AD7506KQ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 16X1 28CDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TA), package / case 28-CDIP (0.600", 15.24mm), number of circuits 1.
In Stock: 5,911
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 18Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 40pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | - |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
AD7506KQ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG528DJ+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 18DIP | 100% | View |
| AD7507KQ | Analog Devices Inc. | DIFFERENTIAL MUX,8 CHANNEL | 89% | View |
| IH5108MJE/883B | Harris Corporation | 8-CH FAULT PROTECTED ANALOG MUX | 75% | View |
| 5962-8771602EA | Analog Devices Inc. | IC 8CH JFET MUX/DEMUX 16CDIP | 71% | View |
| DG509ADJ+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16DIP | 64% | View |
| MUX08AQ/883C | Analog Devices Inc. | IC MULTIPLEXER 8CH 16CDIP | 60% | View |
Submit your RFQ for AD7506KQ and get a quote within 24 hours.
