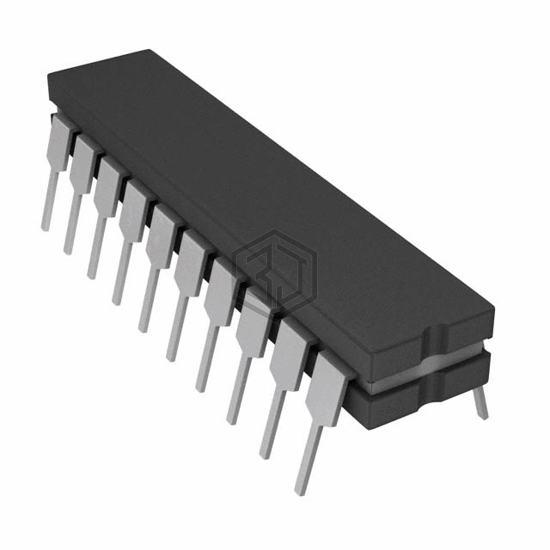

IC DAC 8BIT V-OUT 20CDIP
AD7226TQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 8BIT V-OUT 20CDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, digital 14.25V ~ 15.75V, package / case 20-CDIP (0.300", 7.62mm).
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 8 |
| Number of D/A Converters | 4 |
| Settling Time | 4µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 11.4V ~ 16.5V, -5V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CERDIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7225BQ | Analog Devices Inc. | IC DAC 8BIT V-OUT 24CDIP | 100% | View |
| AD7225KNZ | Analog Devices Inc. | IC DAC 8BIT V-OUT 24DIP | 100% | View |
| MAX500AEPE+ | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT V-OUT 16DIP | 95% | View |
| LTC1650IN#PBF | Analog Devices Inc. | IC DAC 16BIT V-OUT 16DIP | 65% | View |
| LTC1650AIN#PBF | Analog Devices Inc. | IC DAC 16BIT V-OUT 16DIP | 65% | View |
| MCP4922-E/P | Microchip Technology | IC DAC 12BIT V-OUT 14DIP | 58% | View |
Submit your RFQ for AD7226TQ and get a quote within 24 hours.
