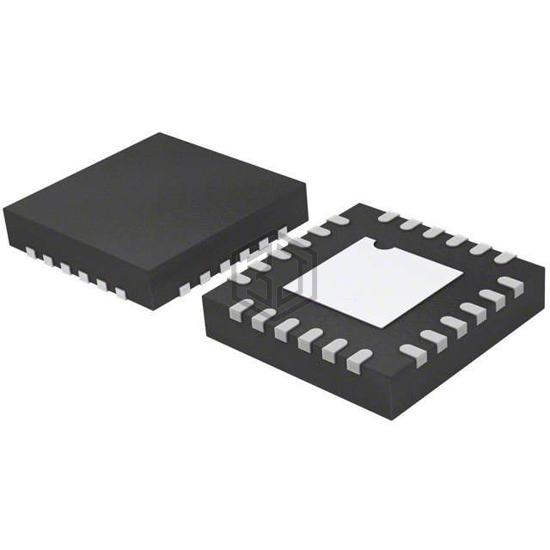

IC DAC 18BIT V-OUT 24LFCSP
AD5780BCPZ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 18BIT V-OUT 24LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 24-VFQFN Exposed Pad, CSP.
In Stock: 8,284
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 18 |
| Number of D/A Converters | 1 |
| Settling Time | 3.5µs (Typ) |
| Output Type | Voltage - Unbuffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage - Supply, Analog | 7.5V ~ 16.5V, -2.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±0.75 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 24-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP-VQ (4x5) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD5780BCPZ-REEL7 | Analog Devices Inc. | IC DAC 18BIT V-OUT 24LFCSP | 100% | View |
| AD5780ACPZ | Analog Devices Inc. | IC DAC 18BIT V-OUT 24LFCSP | 100% | View |
| AD5780ACPZ-REEL7 | Analog Devices Inc. | IC DAC 18BIT V-OUT 24LFCSP | 100% | View |
| AD5790BCPZ-RL7 | Analog Devices Inc. | IC DAC 20BIT V-OUT 24LFCSP | 99% | View |
| AD5790BCPZ | Analog Devices Inc. | IC DAC 20BIT V-OUT 24LFCSP | 99% | View |
| AD5760BCPZ | Analog Devices Inc. | IC DAC 16BIT V-OUT 24LFCSP | 99% | View |
Submit your RFQ for AD5780BCPZ and get a quote within 24 hours.
