IC DAC 16BIT V-OUT 28CDIP

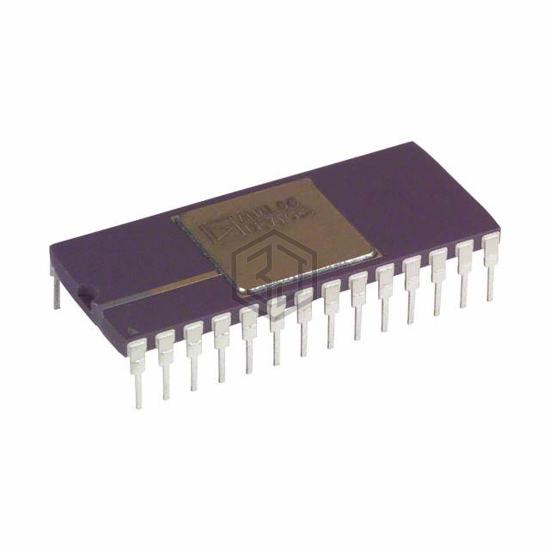

AD569AD is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT V-OUT 28CDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - supply, analog ±10.8V ~ 13.2V, package / case 28-CDIP (0.600", 15.24mm).
In Stock: 646
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 6µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±10.8V ~ 13.2V |
| Voltage - Supply, Digital | - |
| INL/DNL (LSB) | ±0.02, ±0.5 |
| Architecture | Segmented DAC |
| Operating Temperature | -25°C ~ 85°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| Mounting Type | Through Hole |
