IC DAC 12BIT A-OUT 24CDIP

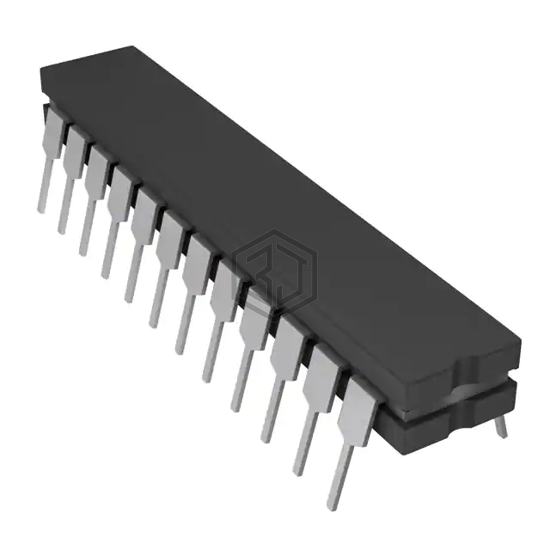

AD568SQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT A-OUT 24CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 5V, package / case 24-CDIP (0.300", 7.62mm).
In Stock: 2,927
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 35µs (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±13.5V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±0.75 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP |
| Mounting Type | Through Hole |
AD568SQ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD568SE/883B | Analog Devices Inc. | DAC, PARALLEL, WORD INPUT | 100% | View |
| HDS-1250ATM | Analog Devices Inc. | IC DAC 12BIT A-OUT 24DIP | 100% | View |
| 5962-8980801LA | Analog Devices Inc. | IC DAC 12BIT MONO HS 24CERDIP | 100% | View |
Submit your RFQ for AD568SQ and get a quote within 24 hours.
