IC DAC 12BIT A-OUT 28CDIP

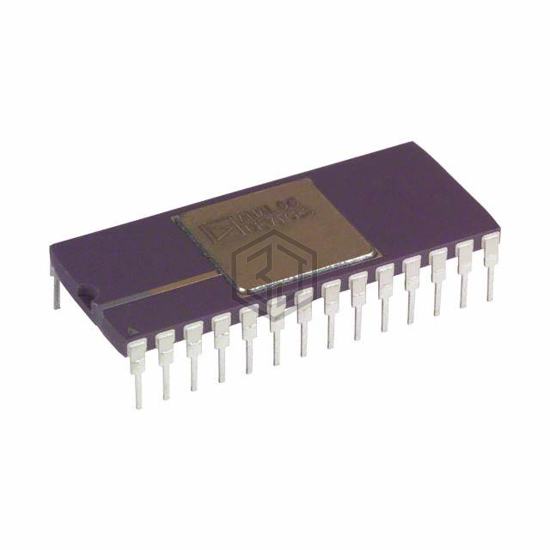

AD567SD is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT A-OUT 28CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, analog ±11.4V ~ 16.5V, package / case 28-CDIP (0.600", 15.24mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 500ns |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | - |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Architecture | R-2R |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI1-565ATD-8 | Harris Corporation | HIGH SPEED, DAC WITH REFERENCE | 100% | View |
| HI1-565AKD-5 | Harris Corporation | HIGH SPEED, MONOLITHIC D/A CONVE | 100% | View |
| HI1-565ATD/883 | Harris Corporation | HIGH SPEED, MONOLITHIC DAC W/REF | 100% | View |
| AD565ASD | Analog Devices Inc. | IC DAC 12BIT A-OUT 24CDIP | 92% | View |
| AD565ATD | Analog Devices Inc. | IC DAC 12BIT A-OUT 24CDIP | 92% | View |
| DAC100ACQ6/883C | Analog Devices Inc. | 10-BIT CCD SIGNAL PROCESSOR | 88% | View |
Submit your RFQ for AD567SD and get a quote within 24 hours.
