IC DAC 10BIT A-OUT 16CDIP

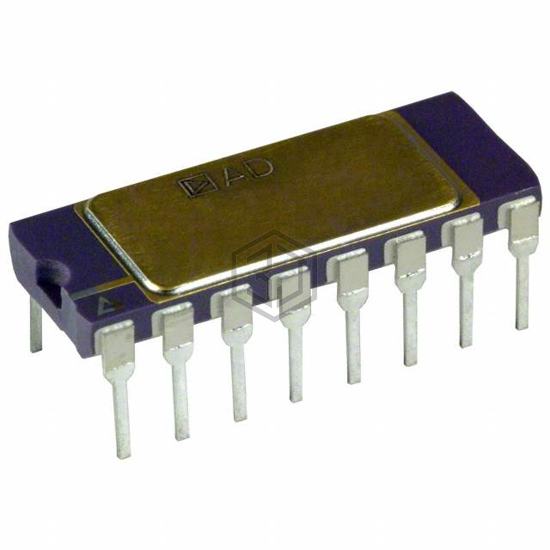

AD561JD is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 10BIT A-OUT 16CDIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply, digital 4.5V ~ 16.5V, package / case 16-CDIP (0.300", 7.62mm).
In Stock: 525
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 10 |
| Number of D/A Converters | 1 |
| Settling Time | 250ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | Internal |
| Voltage - Supply, Analog | 4.5V ~ 16.5V, -10.8V ~ 16.5V |
| Voltage - Supply, Digital | 4.5V ~ 16.5V |
| INL/DNL (LSB) | ±0.25, ±0.5 |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD561JNZ | Analog Devices Inc. | IC DAC 10BIT A-OUT 16DIP | 100% | View |
| HI1-565AJD-5 | Harris Corporation | DAC, 1 FUNC, PARALLEL, WORD INPU | 74% | View |
| HI1-565ASD/883 | Renesas Electronics America Inc | IC DAC 12BIT SBDIP | 74% | View |
Submit your RFQ for AD561JD and get a quote within 24 hours.
