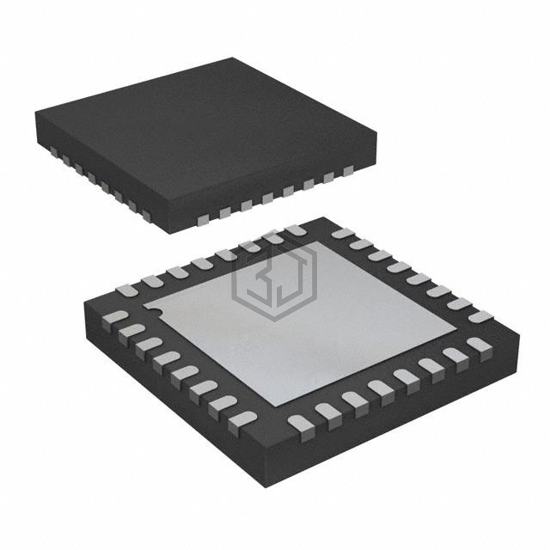

IC DAC 16BIT A-OUT 32LFCSP
AD5544BCPZ-R2 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT A-OUT 32LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 32-VFQFN Exposed Pad, CSP.
In Stock: 2,806
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 16 |
| Number of D/A Converters | 4 |
| Settling Time | 900ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-VQ (5x5) |
| Mounting Type | Surface Mount |
AD5544BCPZ-R2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD5544BRSZ | Analog Devices Inc. | IC DAC 16BIT A-OUT 28SSOP | 100% | View |
| AD5544ARSZ | Analog Devices Inc. | IC DAC 16BIT A-OUT 28SSOP | 100% | View |
| AD5544BRSZ-REEL7 | Analog Devices Inc. | IC DAC 16BIT A-OUT 28SSOP | 100% | View |
| AD5544ARSZ-REEL7 | Analog Devices Inc. | IC DAC 16BIT A-OUT 28SSOP | 100% | View |
| AD5544ACPZ-1-RL7 | Analog Devices Inc. | IC DAC 16BIT SRL QUAD 32LFCSP | 100% | View |
| AD5554BRSZ | Analog Devices Inc. | IC DAC 14BIT A-OUT 28SSOP | 99% | View |
Submit your RFQ for AD5544BCPZ-R2 and get a quote within 24 hours.
