16BIT, 1LSB, 2.7-5.5V WITH CLR,

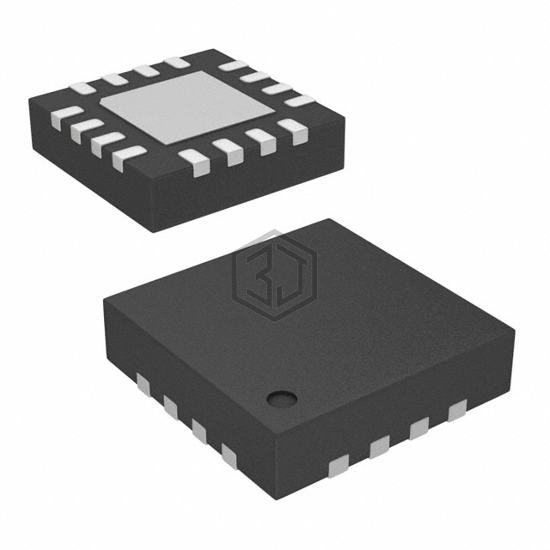

AD5542ABCPZ-500RL7 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. 16BIT, 1LSB, 2.7-5.5V WITH CLR,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 16-WFQFN Exposed Pad, CSP.
In Stock: 4,511
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 1µs (Typ) |
| Output Type | Voltage - Unbuffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC8871SBPW | Texas Instruments | IC DAC 16BIT V-OUT 16TSSOP | 100% | View |
| DAC8871SPWR | Texas Instruments | IC DAC 16BIT V-OUT 16TSSOP | 100% | View |
| LTC2641AIMS8-16#TRPBF | Analog Devices Inc. | IC DAC 16BIT V-OUT 8MSOP | 100% | View |
| AD5542ARZ-REEL7 | Analog Devices Inc. | IC DAC 16BIT V-OUT 14SOIC | 100% | View |
| DAC8831IBDR | Texas Instruments | IC DAC 16BIT V-OUT 14SOIC | 100% | View |
| LTC2642IMS-14#PBF | Analog Devices Inc. | IC DAC 14BIT V-OUT 10MSOP | 99% | View |
Submit your RFQ for AD5542ABCPZ-500RL7 and get a quote within 24 hours.
