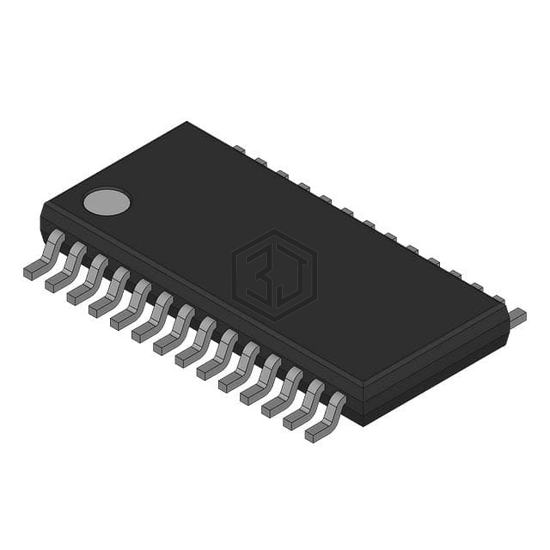

16-BIT, SERIAL INPUT DAC
AD5421AREZ-REEL7 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. 16-BIT, SERIAL INPUT DAC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply, digital 3.17V ~ 3.48V, package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 7,752
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 50µs (Typ) |
| Output Type | Current - Buffered |
| Differential Output | No |
| Data Interface | DSP, Microwire, QSPI, SPI |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.71V ~ 5.5V |
| Voltage - Supply, Digital | 3.17V ~ 3.48V |
| INL/DNL (LSB) | ±1 |
| Architecture | Cyclic Serial |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-TSSOP-EP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC8750IPWPR | Texas Instruments | IC DAC 16BIT A-OUT 24HTSSOP | 67% | View |
| DAC8750IRHAT | Texas Instruments | IC DAC 16BIT A-OUT 40VQFN | 67% | View |
| DAC8750IPWP | Texas Instruments | IC DAC 16BIT A-OUT 24HTSSOP | 67% | View |
| DAC8750IRHAR | Texas Instruments | IC DAC 16BIT A-OUT 40VQFN | 67% | View |
| DAC7750IPWP | Texas Instruments | IC DAC 12BIT A-OUT 24HTSSOP | 64% | View |
| DAC7750IRHAT | Texas Instruments | IC DAC 12BIT A-OUT 40VQFN | 64% | View |
Submit your RFQ for AD5421AREZ-REEL7 and get a quote within 24 hours.
