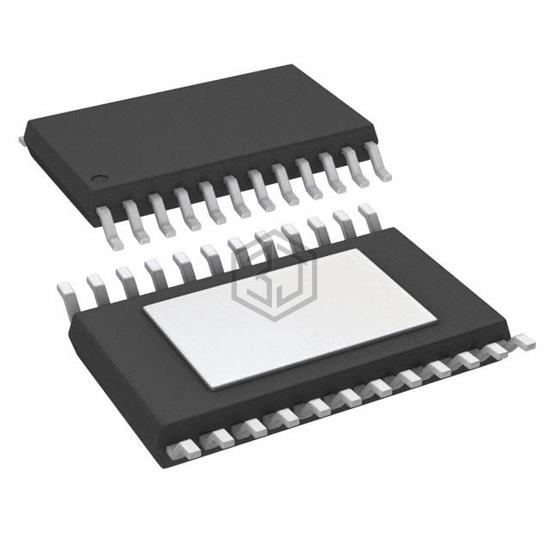

IC DAC 16BIT A-OUT 24TSSOP
AD5420AREZ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT A-OUT 24TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 24-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 17,774
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 40µs |
| Output Type | Current - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 10.8V ~ 40V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | -, ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 24-TSSOP-EP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD5420AREZ-REEL7 | Analog Devices Inc. | IC DAC 16BIT A-OUT 24TSSOP | 100% | View |
| AD5420ACPZ-REEL | Analog Devices Inc. | IC DAC 16BIT A-OUT 40LFCSP | 100% | View |
| AD5420ACPZ-REEL7 | Analog Devices Inc. | IC DAC 16BIT A-OUT 40LFCSP | 100% | View |
| AD5410AREZ-REEL7 | Analog Devices Inc. | IC DAC 12BIT A-OUT 24TSSOP | 97% | View |
| AD5410ACPZ-REEL | Analog Devices Inc. | IC DAC 12BIT A-OUT 40LFCSP | 97% | View |
| AD5410AREZ | Analog Devices Inc. | IC DAC 12BIT A-OUT 24TSSOP | 97% | View |
Submit your RFQ for AD5420AREZ and get a quote within 24 hours.
