1 CHANNEL;14-BIT 4-TO-20 MA AND

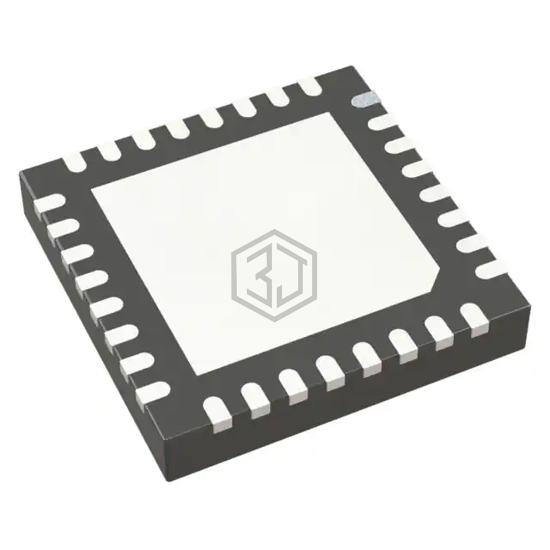

AD5413BCPZ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. 1 CHANNEL;14-BIT 4-TO-20 MA AND. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply, digital 4.5V, 7V ~ 33V, package / case 32-WFQFN Exposed Pad, CSP.
In Stock: 1,830
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 14 |
| Number of D/A Converters | 1 |
| Settling Time | 20µs |
| Output Type | Voltage or Current - Buffered |
| Differential Output | No |
| Data Interface | DSP, MICROWIRE™, QSPI™, and SPI™ |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.5V, 7V ~ 33V |
| Voltage - Supply, Digital | 4.5V, 7V ~ 33V |
| INL/DNL (LSB) | ±0.012FSR (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP (5x5) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC8760IPWP | Texas Instruments | IC DAC 16BIT V OR A-OUT 24HTSSOP | 81% | View |
| AD5422BCPZ-REEL7 | Analog Devices Inc. | IC DAC 16BIT V OR A-OUT 40LFCSP | 80% | View |
| AD5422ACPZ-REEL7 | Analog Devices Inc. | IC DAC 16BIT V OR A-OUT 40LFCSP | 80% | View |
| AD5422BCPZ-REEL | Analog Devices Inc. | IC DAC 16BIT V OR A-OUT 40LFCSP | 80% | View |
| ADFS5758BCPZ-RL7 | Analog Devices Inc. | FUNCTIONALSAFECERTIFIED VERSION/ | 78% | View |
| ADFS5758BCPZ | Analog Devices Inc. | FUNCTIONALSAFECERTIFIED VERSION/ | 78% | View |
Submit your RFQ for AD5413BCPZ and get a quote within 24 hours.
