IC DAC 12BIT V-OUT 28CDIP

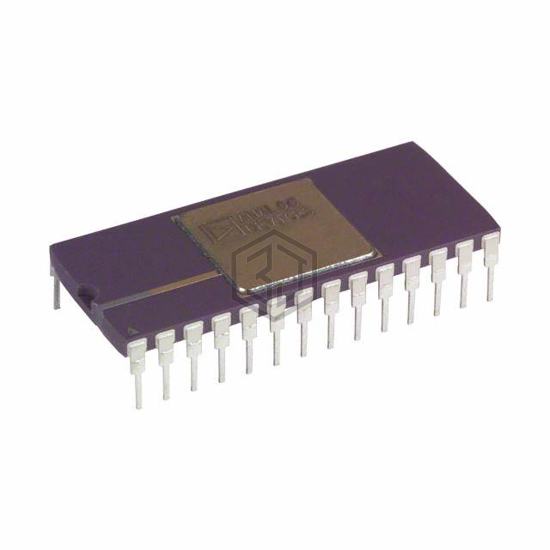

AD390SD is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT V-OUT 28CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, analog ±13.5V ~ 16.5V, package / case 28-CDIP (0.600", 15.24mm).
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 4 |
| Settling Time | 8µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±13.5V ~ 16.5V |
| Voltage - Supply, Digital | - |
| INL/DNL (LSB) | ±0.25, ±0.5 |
| Architecture | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| Mounting Type | Through Hole |
AD390SD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 5962-8850902XA | Analog Devices Inc. | IC DAC 12BIT V-OUT 28CDIP | 100% | View |
| AD390TD/883B | Analog Devices Inc. | IC DAC 12BIT QUAD 28CDIP | 100% | View |
| 5962-8850901XC | Analog Devices Inc. | QUAD CHANNEL 12-BIT (AD390S) | 100% | View |
| AD390TD | Analog Devices Inc. | IC DAC 12BIT V-OUT 28CDIP | 100% | View |
| 5962-8850901XA | Analog Devices Inc. | QUAD CHANNEL 12-BIT (AD390SD) | 100% | View |
| AD7247ATQ | Analog Devices Inc. | IC DAC 12BIT V-OUT 24CDIP | 83% | View |
Submit your RFQ for AD390SD and get a quote within 24 hours.
