16-BIT 500 KHZ SAMPLING ADC

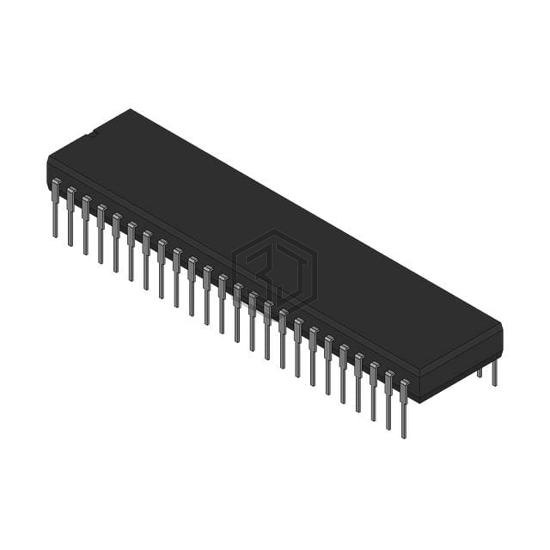

AD1385TD is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. 16-BIT 500 KHZ SAMPLING ADC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 14.25V ~ 15.75V, ±4.75V ~ 5.25V, package / case 48-CDIP (0.600", 15.24mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 14.25V ~ 15.75V, ±4.75V ~ 5.25V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V, ±4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 48-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 48-SBDIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD5214TD | Analog Devices Inc. | 12-BIT SAR, HIGH ACCURACY ADC | 95% | View |
| AD5214TD/883B | Analog Devices Inc. | 12-BIT SAR, HIGH ACCURACY ADC | 95% | View |
| AD5212TDB | Analog Devices Inc. | 12-BIT SAR, HIGH ACCURACY ADC | 95% | View |
| 5962-8512702XA | Analog Devices Inc. | IC ADC 12BIT SAR 28CDIP | 79% | View |
| AD574ATD | Analog Devices Inc. | IC ADC 12BIT SAR 28CDIP | 79% | View |
| AD574ASD | Analog Devices Inc. | IC ADC 12BIT SAR 28CDIP | 79% | View |
Submit your RFQ for AD1385TD and get a quote within 24 hours.
