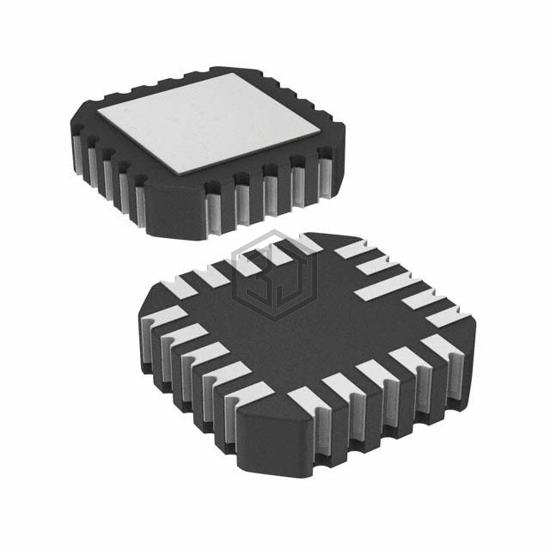

IC DAC 8BIT LC2MOS 20CLCC
5962-9090801M2A is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 8BIT LC2MOS 20CLCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply, digital 14.25V ~ 15.75V, package / case 20-CLCC.
In Stock: 1,981
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 8 |
| Number of D/A Converters | 1 |
| Settling Time | 20µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 11.4V ~ 16.5V, ±5V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 20-CLCC |
| Supplier Device Package | 20-CLCC (9x9) |
| Mounting Type | Surface Mount |
