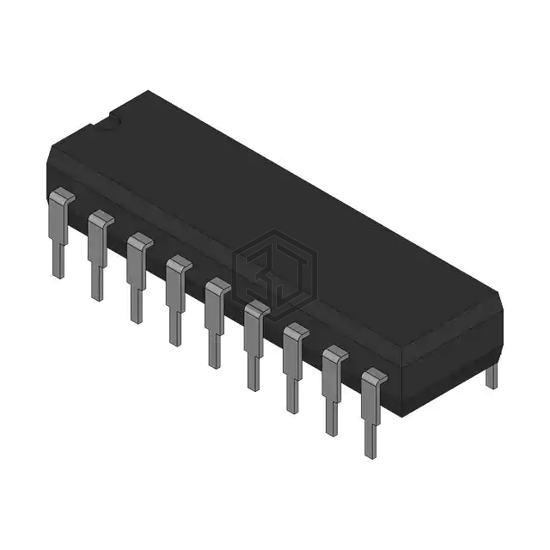

12-BIT DAC (PM7541AB)
5962-8948103VA is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. 12-BIT DAC (PM7541AB). Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 5V ~ 17V, package / case 18-CDIP (0.300", 7.62mm).
In Stock: 5,568
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 1µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 5V ~ 17V |
| Voltage - Supply, Digital | 5V ~ 17V |
| INL/DNL (LSB) | ±0.5 (Max) |
| Architecture | Multiplying DAC |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 18-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 18-CERDIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 5962-8948104VA | Analog Devices Inc. | 12-BIT DAC (PM7541AA) | 100% | View |
| AD7548TQ | Analog Devices Inc. | DAC, PARALLEL, 8 BITS INPUT | 99% | View |
| PM7542BQ | Analog Devices Inc. | M-PROC COMPATIBLE 12-BIT DAC | 99% | View |
| AD7548SQ/883B | Analog Devices Inc. | DAC, PARALLEL, 8 BITS INPUT | 99% | View |
| PM7548BR/883C | Analog Devices Inc. | DUAL 8-BIT MULTIPLYING DAC | 99% | View |
| DAC8222AW/883C | Analog Devices Inc. | DUAL 12-BIT MULTIPLYING DAC | 93% | View |
Submit your RFQ for 5962-8948103VA and get a quote within 24 hours.
