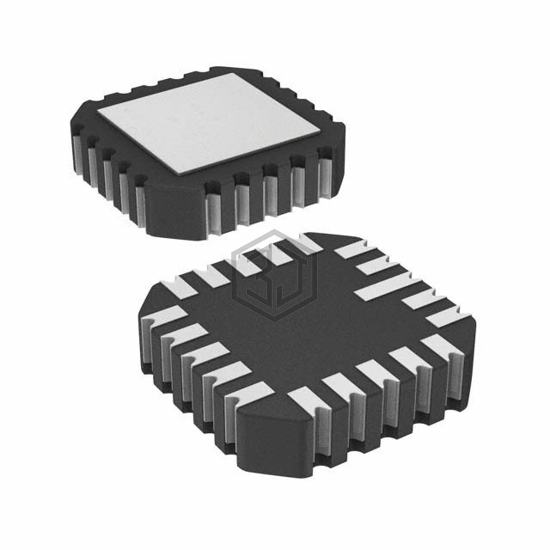

IC 8CH JFET MUX/DEMUX 20CLCC
5962-87716022A is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC 8CH JFET MUX/DEMUX 20CLCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 20-CLCC, number of circuits 1.
In Stock: 1,002
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 21Ohm (Typ) |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 2µs, 400ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 2.5pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -70dB @ 500kHz |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-CLCC |
| Supplier Device Package | 20-CLCC (9x9) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MUX08BRC/883C | Analog Devices Inc. | 8-CH JFET ANALOG MULTIPLEXERS | 100% | View |
| MAX328MWE/PR3+T | Analog Devices Inc./Maxim Integrated | ULTRA-LOW LEAKAGE MONOLITHIC CMO | 59% | View |
| MAX328MWE/PR3+ | Analog Devices Inc./Maxim Integrated | ULTRA-LOW LEAKAGE MONOLITHIC CMO | 59% | View |
| HI4-5049/883 | Harris Corporation | SPST ANALOG SWITCH, 2 CHANNEL | 57% | View |
| MAX338MSE/PR3+ | Analog Devices Inc./Maxim Integrated | IC SWITCH 8X1 16SOIC | 51% | View |
| MAX339MSE/PR3+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SINGLE 16SOIC | 51% | View |
Submit your RFQ for 5962-87716022A and get a quote within 24 hours.
