Analog Devices Inc./Maxim Integrated

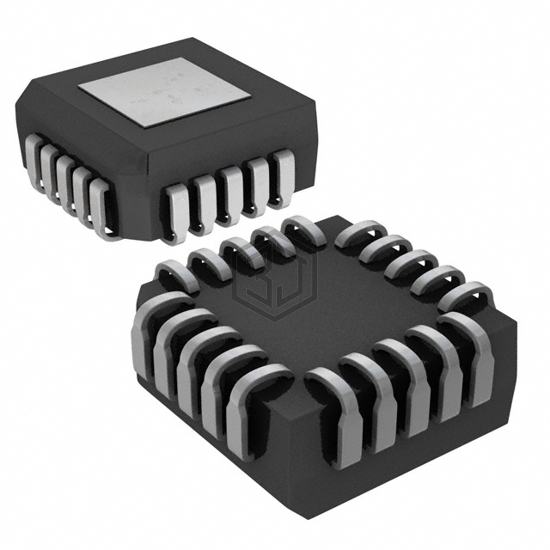

IC DAC 12BIT A-OUT 20PLCC
MX7549JP+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 12BIT A-OUT 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 5V ~ 15V, package / case 20-LCC (J-Lead).
In Stock: 8,760
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 1.5µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | - |
| Reference Type | External |
| Voltage - Supply, Analog | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V |
| INL/DNL (LSB) | ±1 (Max), ±0.5 (Max) |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
| Mounting Type | Surface Mount |
MX7549JP+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MX7543JCWE+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 16SOIC | 87% | View |
| LTC1588CG#PBF | Analog Devices Inc. | IC DAC 12BIT A-OUT 16SSOP | 87% | View |
| AD7547JPZ | Analog Devices Inc. | IC DAC 12BIT A-OUT 28PLCC | 85% | View |
| AD7547KPZ | Analog Devices Inc. | IC DAC 12BIT A-OUT 28PLCC | 85% | View |
| LTC2753BCUK-16#TRPBF | Analog Devices Inc. | IC DAC 16BIT A-OUT 48QFN | 79% | View |
| AD7549JPZ | Analog Devices Inc. | IC DAC 12BIT A-OUT 20PLCC | 79% | View |
Submit your RFQ for MX7549JP+ and get a quote within 24 hours.
