Analog Devices Inc./Maxim Integrated

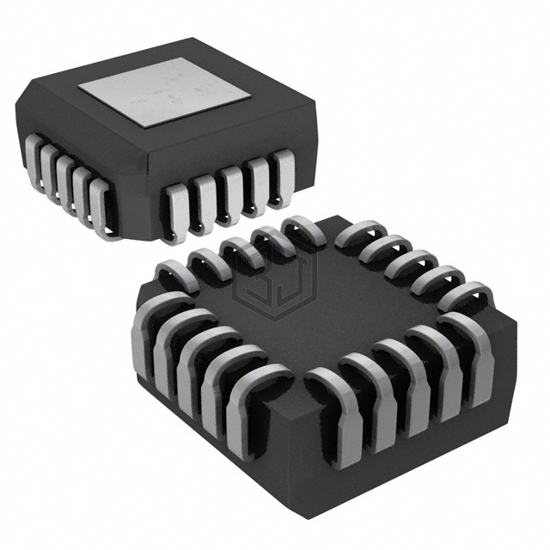

IC DAC 14BIT A-OUT 20PLCC
MX7534KP+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 14BIT A-OUT 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 11.4V ~ 15.75V, package / case 20-LCC (J-Lead).
In Stock: 4,856
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 14 |
| Number of D/A Converters | 1 |
| Settling Time | 1.5µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 11.4V ~ 15.75V |
| Voltage - Supply, Digital | 11.4V ~ 15.75V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7535SE/883B | Analog Devices Inc. | DAC, PARALLEL, WORD INPUT | 100% | View |
| AD7547JR-REEL | Analog Devices Inc. | IC DAC 12BIT A-OUT 24SOIC | 91% | View |
| AD7547JRZ | Analog Devices Inc. | IC DAC 12BIT A-OUT 24SOIC | 91% | View |
| MX7537JEWG+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT DL MULT 24-SOIC | 91% | View |
| MX7547KCWG | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 24SOIC | 91% | View |
| AD7548JRZ-REEL7 | Analog Devices Inc. | IC DAC 12BIT A-OUT 20SOIC | 83% | View |
Submit your RFQ for MX7534KP+ and get a quote within 24 hours.
