Analog Devices Inc./Maxim Integrated
IC DAC 8BIT MULT 20-PLCC

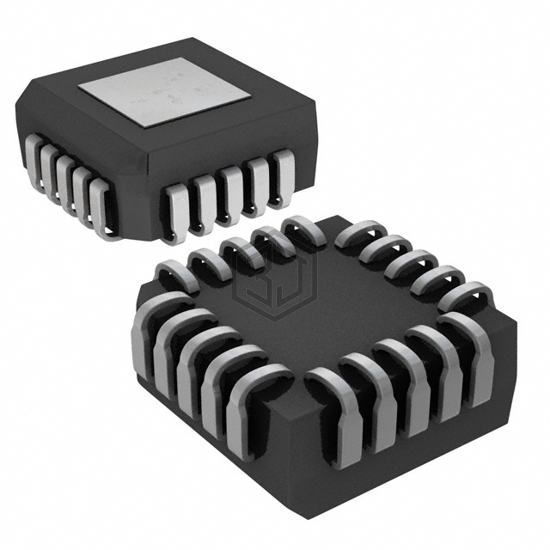

MX7524JP+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 8BIT MULT 20-PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 5V ~ 15V, package / case 20-LCC (J-Lead).
In Stock: 98
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 8 |
| Number of D/A Converters | 1 |
| Settling Time | 500ns |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD5553CRMZ | Analog Devices Inc. | IC DAC 14BIT A-OUT 8MSOP | 95% | View |
| AD5543BRZ | Analog Devices Inc. | IC DAC 16BIT A-OUT 8SOIC | 93% | View |
| AD5543CRMZ | Analog Devices Inc. | IC DAC 16BIT A-OUT 8MSOP | 93% | View |
| AD5545BRUZ-REEL7 | Analog Devices Inc. | IC DAC 16BIT A-OUT 16TSSOP | 87% | View |
| AD5556CRUZ | Analog Devices Inc. | IC DAC 14BIT A-OUT 28TSSOP | 83% | View |
| AD5546BRUZ | Analog Devices Inc. | IC DAC 16BIT A-OUT 28TSSOP | 82% | View |
Submit your RFQ for MX7524JP+ and get a quote within 24 hours.
