Analog Devices Inc./Maxim Integrated

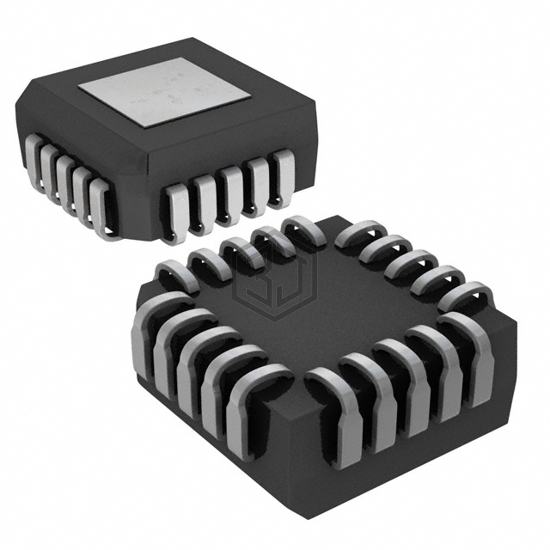

IC DAC 8BIT W/AMP 20-PLCC
MX7224KP+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 8BIT W/AMP 20-PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 14.25V ~ 15.75V, package / case 20-LCC (J-Lead).
In Stock: 98
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 8 |
| Number of D/A Converters | 1 |
| Settling Time | 8µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 11.4V ~ 16.5V, -5V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
| Mounting Type | Surface Mount |
MX7224KP+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5158CEE+T | Analog Devices Inc./Maxim Integrated | IC DAC 10BIT V-OUT 16QSOP | 73% | View |
| MAX534BCEE+T | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT V-OUT 16QSOP | 69% | View |
| AD5306ARUZ | Analog Devices Inc. | IC DAC 8BIT V-OUT 16TSSOP | 57% | View |
| AD5307ARUZ | Analog Devices Inc. | IC DAC 8BIT V-OUT 16TSSOP | 57% | View |
| AD5308ARUZ | Analog Devices Inc. | IC DAC 8BIT V-OUT 16TSSOP | 55% | View |
| AD5308BRUZ-REEL7 | Analog Devices Inc. | IC DAC 8BIT V-OUT 16TSSOP | 55% | View |
Submit your RFQ for MX7224KP+ and get a quote within 24 hours.
