Analog Devices Inc./Maxim Integrated
REF DESIGN PLANAR TRANSFORMER PS

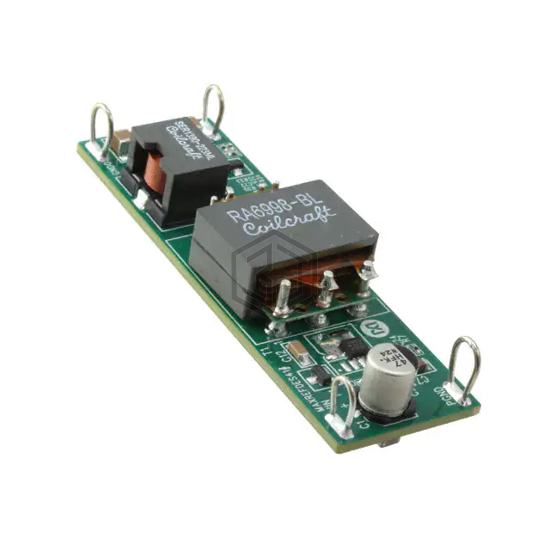

MAXREFDES41# is a Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS manufactured by Analog Devices Inc./Maxim Integrated. REF DESIGN PLANAR TRANSFORMER PS. Key specifications: voltage - input 18V ~ 36V, current - output 3.5A, power - output 40 W, frequency - switching 250kHz.
In Stock: 4,878
| Attribute | Value |
|---|---|
| Product Status | Active |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Isolated |
| Power - Output | 40 W |
| Voltage - Output | 12V |
| Current - Output | 3.5A |
| Voltage - Input | 18V ~ 36V |
| Regulator Topology | Forward Converter |
| Frequency - Switching | 250kHz |
| Board Type | Fully Populated |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MAX17599 |
Submit your RFQ for MAXREFDES41# and get a quote within 24 hours.
