Analog Devices Inc./Maxim Integrated

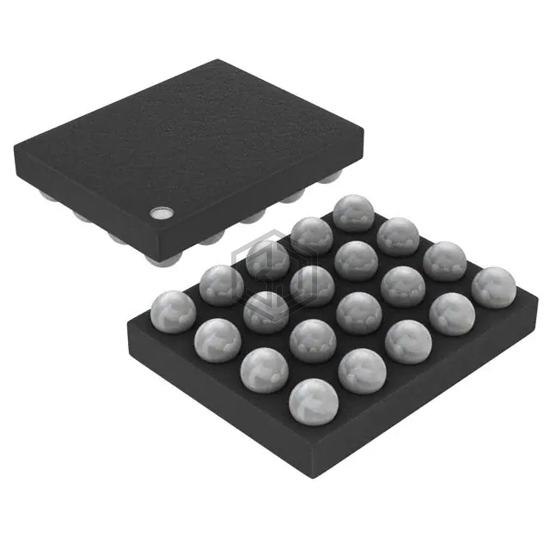

IC REG BCK BST ADJ 5A 20WLP
MAX77816AEWP+ is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. IC REG BCK BST ADJ 5A 20WLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-WFBGA, WLBGA, current - output 5A.
In Stock: 9,947
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.6V |
| Voltage - Output (Max) | 5.14V |
| Current - Output | 5A |
| Frequency - Switching | 2.5MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFBGA, WLBGA |
| Supplier Device Package | 20-WLP (1.83x2.13) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX77816BEWP+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK BST ADJ 5A 20WLP | 100% | View |
| MAX77816AEWP+T | Analog Devices Inc./Maxim Integrated | IC REG BCK BST ADJ 5A 20WLP | 100% | View |
| MAX77816CEWP+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK BST ADJ 5A 20WLP | 100% | View |
| RT6158HWSC | Richtek USA Inc. | IC REG BUCK BST ADJ 3A 25WLCSP | 84% | View |
| RTQ1741AGQW | Richtek USA Inc. | IC BUCK-BOOST 4A WDFN-14A | 79% | View |
| RT6158AWSC | Richtek USA Inc. | IC REG BUCK-BOOST 2A 25WLCSP | 78% | View |
Submit your RFQ for MAX77816AEWP+ and get a quote within 24 hours.
