Analog Devices Inc./Maxim Integrated
16V CONFIGURABLE 3A BUCK CONVERT

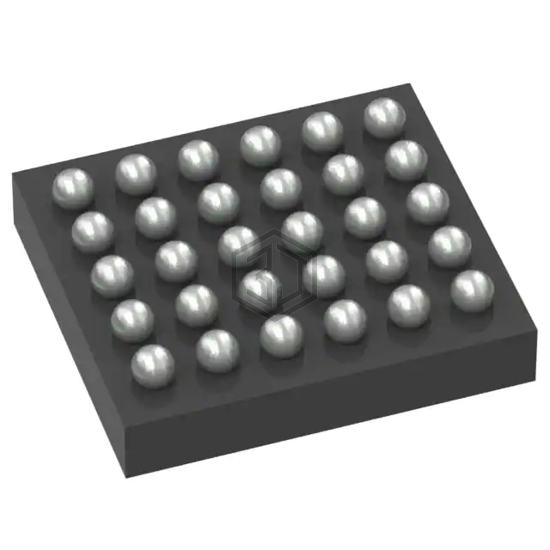

MAX77540AAWV+ is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. 16V CONFIGURABLE 3A BUCK CONVERT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 30-WFBGA, WLBGA, current - output 3A, 3A.
In Stock: 520
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Voltage - Output (Max) | 5.2V |
| Current - Output | 3A, 3A |
| Frequency - Switching | 500kHz, 1MHz, 1.6MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 30-WFBGA, WLBGA |
| Supplier Device Package | 30-WLP (2.51x2.31) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RTQ2833AN-TB | Richtek USA Inc. | 3A 18V HIGH EFFICIENCY STEP DOWN | 87% | View |
| RTQ2836AN-TB | Richtek USA Inc. | 6A 18V HI EFFICIENCY STEO DOWN | 80% | View |
| MP8714GLE-P | Monolithic Power Systems Inc. | IC REG BUCK ADJUSTABLE 10A | 76% | View |
| MAX77542AAWU+ | Analog Devices Inc./Maxim Integrated | IC REG BUCK ADJ 4A QUAD 60WLP | 74% | View |
| MP8758GL-P | Monolithic Power Systems Inc. | IC REG BUCK ADJUSTABLE 10A | 72% | View |
| MP8715DN-LF | Monolithic Power Systems Inc. | IC REG BUCK ADJUSTABLE 4A 8SOIC | 59% | View |
Submit your RFQ for MAX77540AAWV+ and get a quote within 24 hours.
