Analog Devices Inc./Maxim Integrated
IC DAC 12BIT SPI

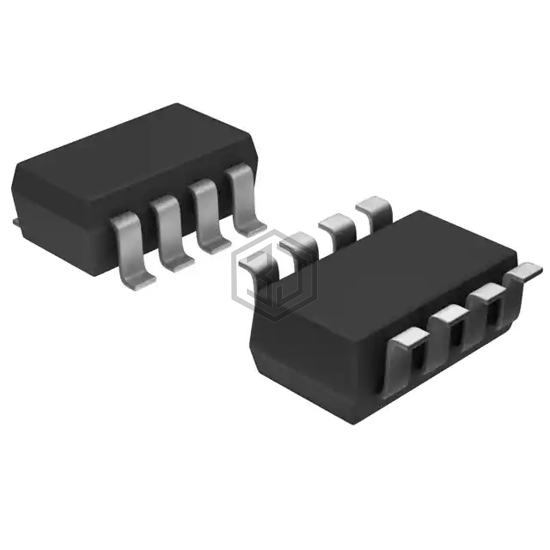

MAX5804AKA+T is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 12BIT SPI. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case SOT-23-8.
In Stock: 4,032
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 10 |
| Number of D/A Converters | 1 |
| Settling Time | 5.2µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | I²C |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.2, ±0.1 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | SOT-23-8 |
| Supplier Device Package | SOT-23-8 |
| Mounting Type | Surface Mount |
MAX5804AKA+T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5704AKA+T | Analog Devices Inc./Maxim Integrated | IC DAC 10BIT V-OUT SOT23-8 | 100% | View |
| MAX5804ATA+T | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT SPI | 100% | View |
| MAX5704AUB+T | Analog Devices Inc./Maxim Integrated | IC DAC 10BIT V-OUT 10UMAX | 100% | View |
| DAC60508ZCYZFT | Texas Instruments | IC DAC 12BIT V-OUT 16DSBGA | 78% | View |
| DAC60508ZYZFT | Texas Instruments | IC DAC 12BIT V-OUT 16DSBGA | 78% | View |
| DAC70508MYZFT | Texas Instruments | IC DAC 14BIT V-OUT 16DSBGA | 76% | View |
Submit your RFQ for MAX5804AKA+T and get a quote within 24 hours.
