Analog Devices Inc./Maxim Integrated

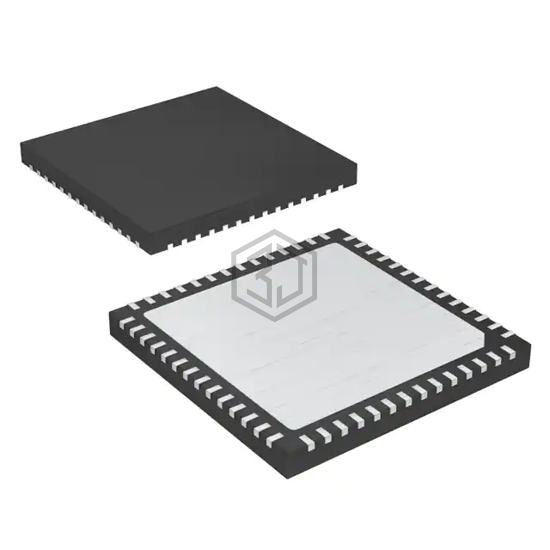

IC DAC 14BIT V-OUT 56TQFN
MAX5755UTN+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 14BIT V-OUT 56TQFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.25V, package / case 56-WFQFN Exposed Pad.
In Stock: 6,174
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 14 |
| Number of D/A Converters | 32 |
| Settling Time | 20µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| INL/DNL (LSB) | ±2, ±1 (Max) |
| Architecture | Pipelined |
| Operating Temperature | 0°C ~ 85°C |
| Package / Case | 56-WFQFN Exposed Pad |
| Supplier Device Package | 56-TQFN (8x8) |
| Mounting Type | Surface Mount |
MAX5755UTN+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5735BUTN+T | Analog Devices Inc./Maxim Integrated | IC DAC 16BIT V-OUT 56TQFN | 98% | View |
| TLV5616CDR | Texas Instruments | IC DAC 12BIT V-OUT 8SOIC | 80% | View |
| TLV5614CD | Texas Instruments | IC DAC 12BIT V-OUT 16SOIC | 80% | View |
| TLV5606IDGKRG4 | Texas Instruments | IC 10-BIT SERIAL D/A 8VSSOP | 78% | View |
| TLV5604CPWR | Texas Instruments | IC DAC 10BIT V-OUT 16TSSOP | 75% | View |
| AD7224KRZ-18 | Analog Devices Inc. | IC DAC 8BIT V-OUT 18SOIC | 57% | View |
