Analog Devices Inc./Maxim Integrated

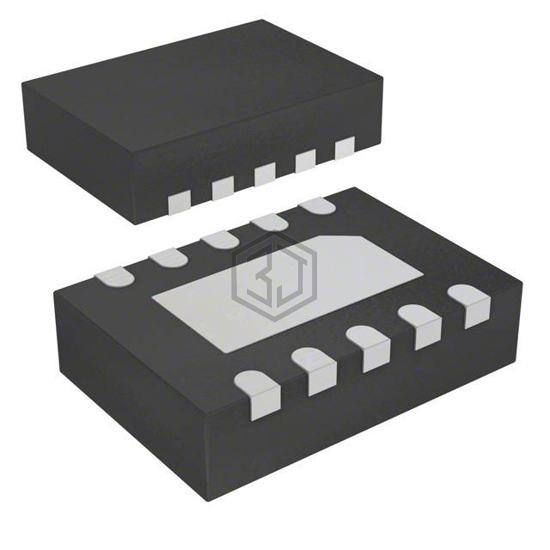

IC DAC 12BIT V-OUT 10TDFN
MAX5705BATB+T is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 12BIT V-OUT 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 10-WFDFN Exposed Pad.
In Stock: 6,507
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 6.3µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.2 |
| Architecture | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3x2) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5705AAUB+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 10UMAX | 100% | View |
| MAX5705BAUB+T | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 10UMAX | 100% | View |
| MAX5705BAUB+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 10UMAX | 100% | View |
| MAX5805BAUB+T | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 10UMAX | 100% | View |
| MAX5805BAUB+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 10UMAX | 100% | View |
| MAX5805BATB+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT DUAL 10TDFN | 100% | View |
Submit your RFQ for MAX5705BATB+T and get a quote within 24 hours.
