Analog Devices Inc./Maxim Integrated

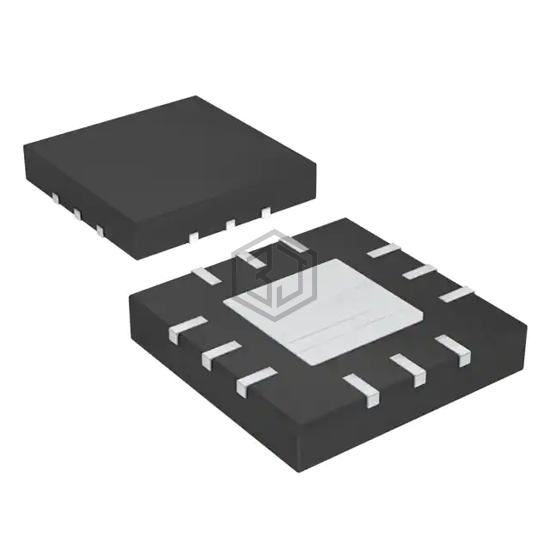

IC DAC 12BIT V-OUT 12TQFN
MAX5535ETC+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 12BIT V-OUT 12TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.8V ~ 5.5V, package / case 12-WQFN Exposed Pad.
In Stock: 374
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 660µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.8V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| INL/DNL (LSB) | ±4, ±0.2 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 12-WQFN Exposed Pad |
| Supplier Device Package | 12-TQFN (4x4) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5533EUA+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 8UMAX | 100% | View |
| MAX5535ETC+T | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 12TQFN | 100% | View |
| MAX5525ETC+T | Analog Devices Inc./Maxim Integrated | IC DAC 10BIT V-OUT 12TQFN | 98% | View |
| MAX5525ETC+ | Analog Devices Inc./Maxim Integrated | IC DAC 10BIT V-OUT 12TQFN | 98% | View |
| MAX5523EUA+ | Analog Devices Inc./Maxim Integrated | IC DAC 10BIT V-OUT 8UMAX | 98% | View |
| MAX5513EUA+T | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT V-OUT 8UMAX | 96% | View |
Submit your RFQ for MAX5535ETC+ and get a quote within 24 hours.
