Analog Devices Inc./Maxim Integrated

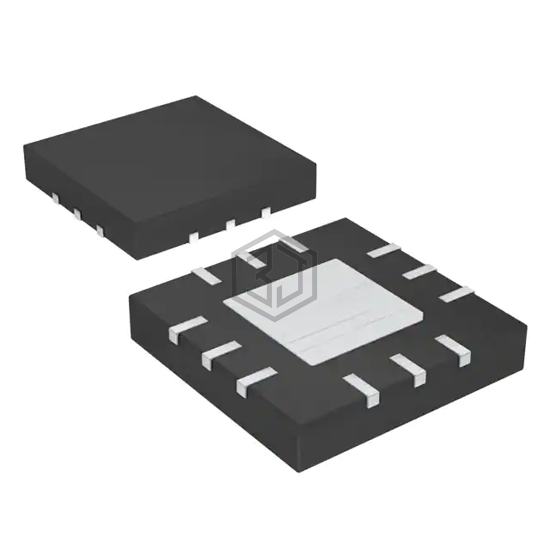

IC DAC 12BIT V-OUT 12TQFN
MAX5534ETC+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 12BIT V-OUT 12TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.8V ~ 5.5V, package / case 12-WQFN Exposed Pad.
In Stock: 1,650
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 660µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 1.8V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| INL/DNL (LSB) | ±4, ±0.2 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 12-WQFN Exposed Pad |
| Supplier Device Package | 12-TQFN (4x4) |
| Mounting Type | Surface Mount |
