Analog Devices Inc./Maxim Integrated

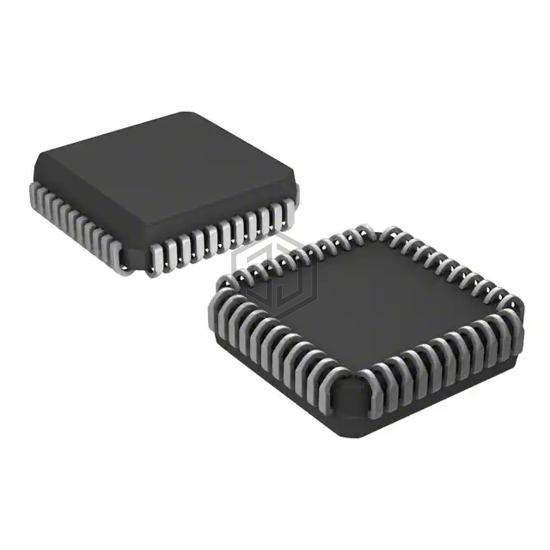

IC DAC 13BIT V-OUT 44PLCC
MAX547BCQH+D is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 13BIT V-OUT 44PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, analog ±5V, package / case 44-LCC (J-Lead).
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Number of Bits | 13 |
| Number of D/A Converters | 8 |
| Settling Time | 5µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | - |
| INL/DNL (LSB) | ±0.5, ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| Mounting Type | Surface Mount |
MAX547BCQH+D is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX547ACMH | Analog Devices Inc./Maxim Integrated | IC DAC 13BIT V-OUT 44MQFP | 100% | View |
| MAX547BEMH+ | Analog Devices Inc./Maxim Integrated | IC DAC 13BIT V-OUT 44MQFP | 100% | View |
| AD7847ARZ-REEL | Analog Devices Inc. | IC DAC 12BIT V-OUT 24SOIC | 80% | View |
| MAX501BCWG+T | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 24SOIC | 77% | View |
| DAC8229FSZ-REEL | Analog Devices Inc. | IC DAC 8BIT V-OUT 20SOIC | 74% | View |
| DAC9881SRGER | Texas Instruments | IC DAC 18BIT V-OUT 24VQFN | 73% | View |
Submit your RFQ for MAX547BCQH+D and get a quote within 24 hours.
