Analog Devices Inc./Maxim Integrated

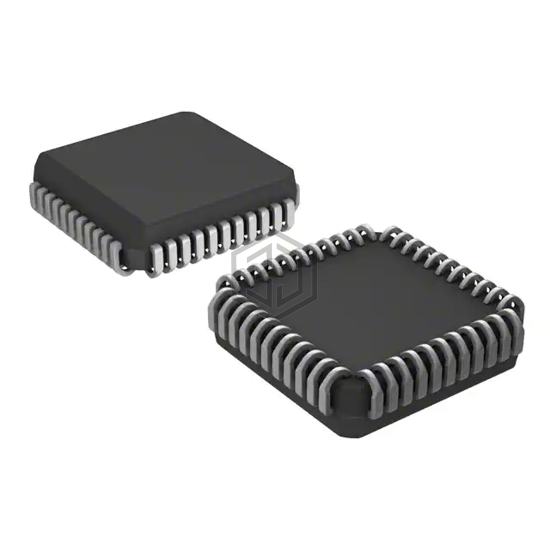

IC DAC 13BIT V-OUT 44PLCC
MAX547AEQH+D is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 13BIT V-OUT 44PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, analog ±5V, package / case 44-LCC (J-Lead).
In Stock: 5,733
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Number of Bits | 13 |
| Number of D/A Converters | 8 |
| Settling Time | 5µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | - |
| INL/DNL (LSB) | ±0.5, ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| Mounting Type | Surface Mount |
MAX547AEQH+D is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5309EUE+T | Analog Devices Inc./Maxim Integrated | IC DAC 10BIT V-OUT 16TSSOP | 96% | View |
| AD7228ABRZ-REEL | Analog Devices Inc. | IC DAC 8BIT V-OUT 24SOIC | 93% | View |
| AD7228ABPZ | Analog Devices Inc. | IC DAC 8BIT V-OUT 28PLCC | 93% | View |
| AD7845BRZ | Analog Devices Inc. | IC DAC 12BIT V-OUT 24SOIC | 77% | View |
| DAC161S055CISQX/NOPB | Texas Instruments | IC DAC 16BIT V-OUT 16WQFN | 75% | View |
| DAC8228FSZ-REEL | Analog Devices Inc. | IC DAC 8BIT V-OUT 20SOIC | 74% | View |
Submit your RFQ for MAX547AEQH+D and get a quote within 24 hours.
