Analog Devices Inc./Maxim Integrated
DAC, 8 FUNC, PARALLEL, WORD INPU

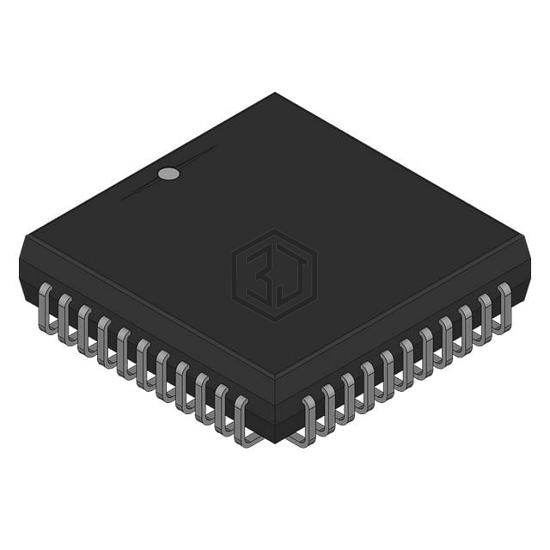

MAX547ACQH is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. DAC, 8 FUNC, PARALLEL, WORD INPU. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital ±4.75V ~ 5.25V, package / case 44-LCC (J-Lead).
In Stock: 980
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 13 |
| Number of D/A Converters | 8 |
| Settling Time | 5µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±4.75V ~ 5.25V |
| Voltage - Supply, Digital | ±4.75V ~ 5.25V |
| INL/DNL (LSB) | ±0.5, ±1 |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 5962-88663013X | Analog Devices Inc. | IC DAC 8BIT OCTAL 28CLCC | 93% | View |
| AD7228ABPZ | Analog Devices Inc. | IC DAC 8BIT V-OUT 28PLCC | 93% | View |
| MAX537BEWE+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 16SOIC | 89% | View |
| DAC7551ZTDRNRQ1 | Texas Instruments | IC DAC 12BIT V-OUT 12USON | 77% | View |
| AD7845ARZ | Analog Devices Inc. | IC DAC 12BIT V-OUT 24SOIC | 77% | View |
| DAC8228FSZ-REEL | Analog Devices Inc. | IC DAC 8BIT V-OUT 20SOIC | 74% | View |
Submit your RFQ for MAX547ACQH and get a quote within 24 hours.
