Analog Devices Inc./Maxim Integrated

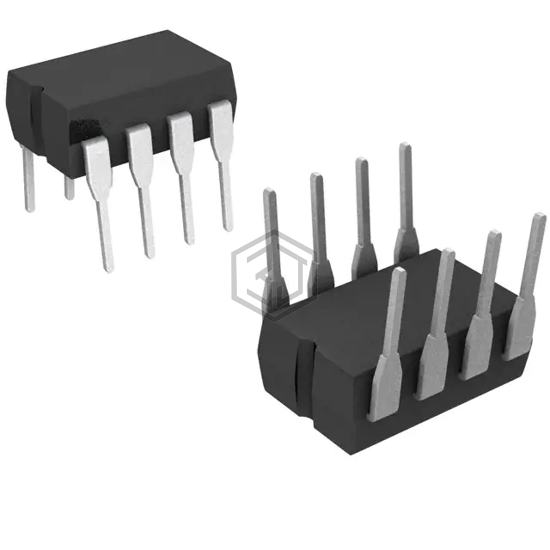

IC DAC 12BIT A-OUT 8CERDIP
MAX543BEJA is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 12BIT A-OUT 8CERDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, 11.4V ~ 15.75V, package / case 8-CDIP (0.300", 7.62mm).
In Stock: 6,433
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 1µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 5V, 11.4V ~ 15.75V |
| Voltage - Supply, Digital | 5V, 11.4V ~ 15.75V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP |
| Mounting Type | Through Hole |
MAX543BEJA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC8043FP | Analog Devices Inc. | IC DAC 12BIT A-OUT 8DIP | 100% | View |
| 5962-8948104VA | Analog Devices Inc. | 12-BIT DAC (PM7541AA) | 100% | View |
| DAC8043FZ | Analog Devices Inc. | 12-BIT SERIAL IN MULTIPLYING DAC | 99% | View |
| AD7548SQ/883B | Analog Devices Inc. | DAC, PARALLEL, 8 BITS INPUT | 99% | View |
| PM7548BR/883C | Analog Devices Inc. | DUAL 8-BIT MULTIPLYING DAC | 99% | View |
| LTC1591IN#PBF | Analog Devices Inc. | IC DAC 14BIT A-OUT 28DIP | 99% | View |
