Analog Devices Inc./Maxim Integrated
IC DAC 13BIT V-OUT 44MQFP

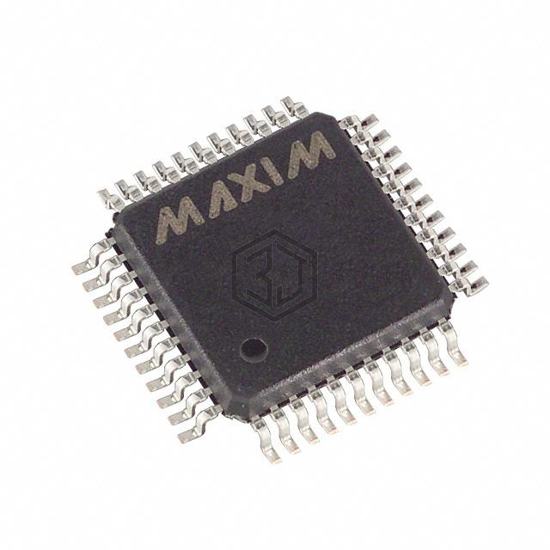

MAX5270BCMH is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 13BIT V-OUT 44MQFP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 5V, package / case 44-QFP.
In Stock: 5,054
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 13 |
| Number of D/A Converters | 8 |
| Settling Time | 22µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±11.4V ~ 12.6V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±4 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 44-QFP |
| Supplier Device Package | 44-MQFP (10x10) |
| Mounting Type | Surface Mount |
MAX5270BCMH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5270BEMH | Analog Devices Inc./Maxim Integrated | IC DAC 13BIT V-OUT 44MQFP | 100% | View |
| MAX5264ACMH-T | Analog Devices Inc./Maxim Integrated | IC DAC 14BIT V-OUT 44MQFP | 99% | View |
| MAX5839BEMH-W | Analog Devices Inc./Maxim Integrated | IC DAC 13BIT 44MQFP | 99% | View |
| MAX515ESA+ | Analog Devices Inc./Maxim Integrated | IC DAC 10BIT V-OUT 8SOIC | 75% | View |
| MAX5734BUTN+T | Analog Devices Inc./Maxim Integrated | IC DAC 16BIT V-OUT 56TQFN | 72% | View |
| MAX5206ACUB+ | Analog Devices Inc./Maxim Integrated | IC DAC 16BIT V-OUT 10UMAX | 69% | View |
Submit your RFQ for MAX5270BCMH and get a quote within 24 hours.
