Analog Devices Inc./Maxim Integrated

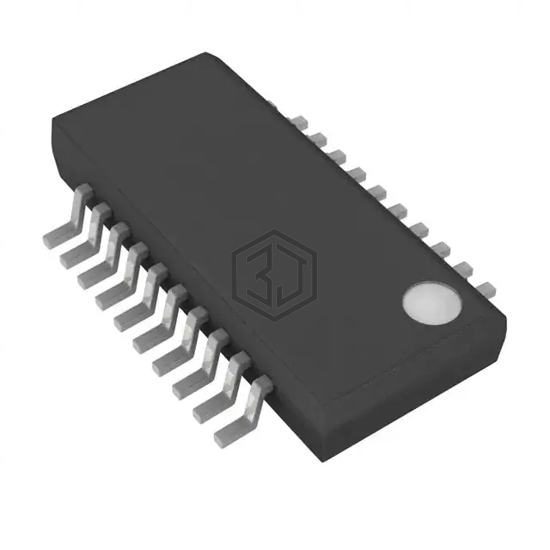

IC DAC 8BIT V-OUT 20QSOP
MAX5115EEP+T is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 8BIT V-OUT 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.25V, package / case 20-SSOP (0.154", 3.90mm Width).
In Stock: 7,996
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 8 |
| Number of D/A Converters | 4 |
| Settling Time | 8µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | I²C |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| INL/DNL (LSB) | ±2, ±1 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP |
| Mounting Type | Surface Mount |
MAX5115EEP+T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD5305ARMZ | Analog Devices Inc. | IC DAC 8BIT V-OUT 10MSOP | 99% | View |
| DAC60004IDMDR | Texas Instruments | IC DAC 12BIT V-OUT 14VSON | 96% | View |
| AD5686ARUZ | Analog Devices Inc. | IC DAC 16BIT V-OUT 16TSSOP | 90% | View |
| AD5696BRUZ-RL7 | Analog Devices Inc. | IC DAC 16BIT V-OUT 16TSSOP | 90% | View |
| AD5696ARUZ | Analog Devices Inc. | IC DAC 16BIT V-OUT 16TSSOP | 90% | View |
| AD5675BCPZ-REEL7 | Analog Devices Inc. | IC DAC 16BIT V-OUT 20LFCSP | 83% | View |
Submit your RFQ for MAX5115EEP+T and get a quote within 24 hours.
