Analog Devices Inc./Maxim Integrated

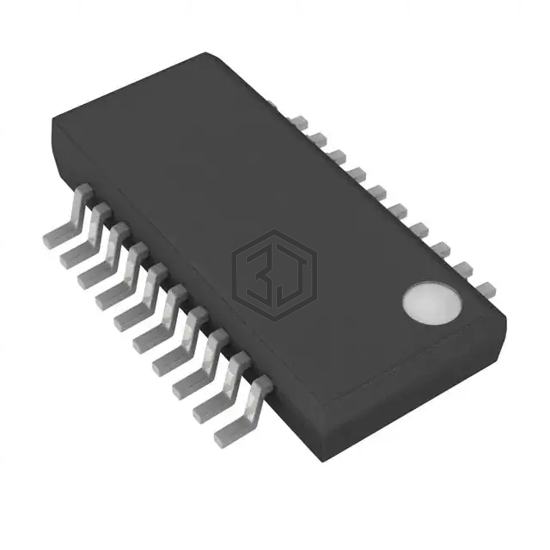

IC DAC 8BIT V-OUT 20QSOP
MAX5105EEP is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 8BIT V-OUT 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 20-SSOP (0.154", 3.90mm Width).
In Stock: 5,483
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 8 |
| Number of D/A Converters | 4 |
| Settling Time | 6µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP |
| Mounting Type | Surface Mount |
MAX5105EEP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7399BRUZ | Analog Devices Inc. | IC DAC 10BIT V-OUT 16TSSOP | 98% | View |
| DAC104S085CISDX/NOPB | Texas Instruments | IC DAC 10BIT V-OUT 10WSON | 98% | View |
| MAX5582ETP+T | Analog Devices Inc./Maxim Integrated | IC DAC 10BIT V-OUT 20TQFN | 94% | View |
| MAX506AEWP+ | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT V-OUT 20SOIC | 93% | View |
| DAC102S085CIMM/NOPB | Texas Instruments | IC DAC 10BIT V-OUT 10VSSOP | 91% | View |
| DAC108S085CIMT/NOPB | Texas Instruments | IC DAC 10BIT V-OUT 16TSSOP | 91% | View |
