Analog Devices Inc./Maxim Integrated
IC REG BUCK BST ADJ DL 32TQFN

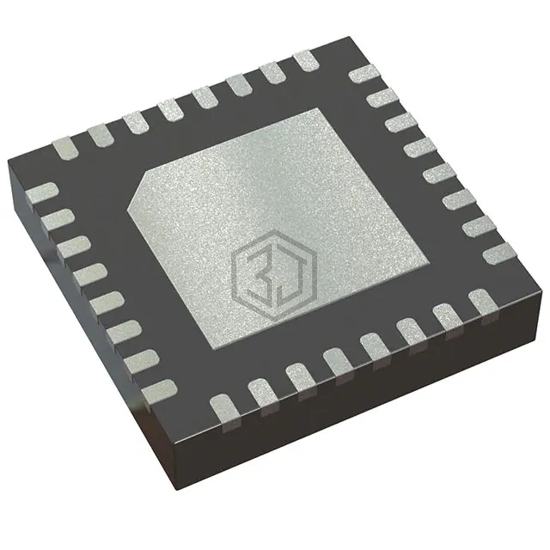

MAX5098AATJ+ is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. IC REG BUCK BST ADJ DL 32TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 32-WFQFN Exposed Pad, current - output 1.75A (Switch), 2.8A (Switch).
In Stock: 6,621
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 19V |
| Voltage - Output (Min/Fixed) | 0.8V, 4.5V |
| Voltage - Output (Max) | 16.15V, 28V |
| Current - Output | 1.75A (Switch), 2.8A (Switch) |
| Frequency - Switching | 200kHz ~ 2.2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5098AATJ+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK BST ADJ DL 32TQFN | 100% | View |
| MAX5073ATI+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK BST ADJ DL 28TQFN | 81% | View |
| MAX5073ATI+ | Analog Devices Inc./Maxim Integrated | IC REG BUCK BST ADJ DL 28TQFN | 81% | View |
| MAX15036ATE+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK BST ADJ 3A 16TQFN | 60% | View |
| MAX15036ATE/V+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK BST ADJ 3A 16TQFN | 60% | View |
| MAX15036ATE/V+ | Analog Devices Inc./Maxim Integrated | IC REG BUCK BST ADJ 3A 16TQFN | 60% | View |
Submit your RFQ for MAX5098AATJ+ and get a quote within 24 hours.
