Analog Devices Inc./Maxim Integrated
IC GATE DRVR LOW-SIDE 14TSSOP

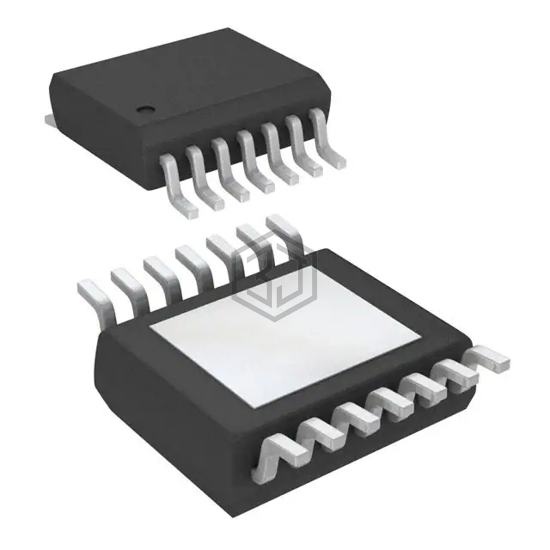

MAX5077AUD+ is a PMIC - Gate Drivers manufactured by Analog Devices Inc./Maxim Integrated. IC GATE DRVR LOW-SIDE 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 15V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 5,008
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Driven Configuration | Low-Side |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 15V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | RC Input Circuit |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 14-TSSOP-EP |
MAX5077AUD+ is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5075AAUA+ | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8UMAX | 100% | View |
| MAX5075AAUA+T | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8UMAX | 100% | View |
| FAN3216TMX | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 97% | View |
| FAN3217TMX-F085 | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 97% | View |
| FAN3217TMX | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 97% | View |
| FAN3216TMX-F085 | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 97% | View |
Submit your RFQ for MAX5077AUD+ and get a quote within 24 hours.
