Analog Devices Inc./Maxim Integrated
IC REG CTRLR FLYBACK 16TSSOP

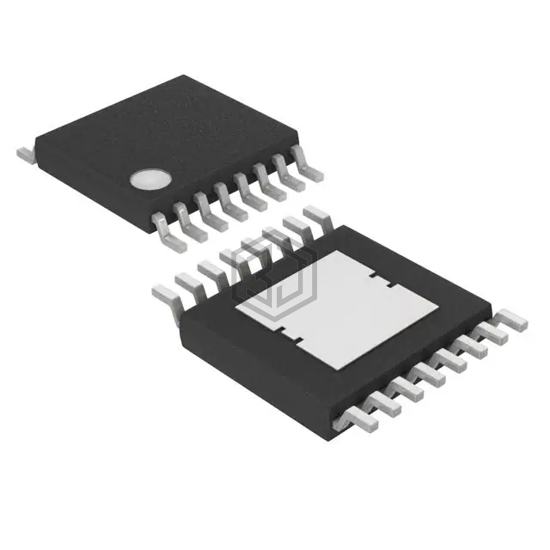

MAX5068EAUE+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REG CTRLR FLYBACK 16TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 10.8V ~ 24V, package / case 16-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 2,139
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Flyback |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 10.8V ~ 24V |
| Frequency - Switching | 12.5kHz ~ 625kHz |
| Duty Cycle (Max) | 75% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Dead Time Control, Enable, Frequency Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
MAX5068EAUE+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5068FAUE+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR FLYBACK 16TSSOP | 100% | View |
| MAX5068EAUE | Analog Devices Inc./Maxim Integrated | IC REG CTRLR FLYBACK 16TSSOP | 100% | View |
| MAX5068FAUE-T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR FLYBACK 16TSSOP | 100% | View |
| MAX5068EAUE+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR FLYBACK 16TSSOP | 100% | View |
| MAX5068FAUE | Analog Devices Inc./Maxim Integrated | IC REG CTRLR FLYBACK 16TSSOP | 100% | View |
| MAX5094BASA+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR MULT TOPOLOGY 8SOIC | 87% | View |
Submit your RFQ for MAX5068EAUE+ and get a quote within 24 hours.
