Analog Devices Inc./Maxim Integrated
IC OFFLINE SW MULT TOP 16TSSOP

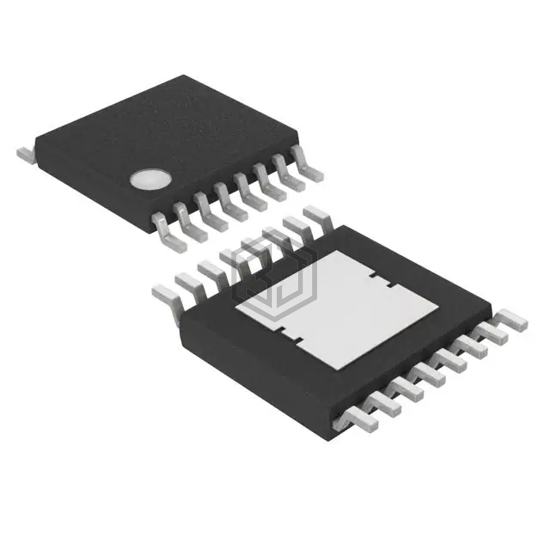

MAX5068AAUE+ is a PMIC - AC DC Converters, Offline Switchers manufactured by Analog Devices Inc./Maxim Integrated. IC OFFLINE SW MULT TOP 16TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 10.8V ~ 24V, package / case 16-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 1,403
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Isolation | Either |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback, Forward |
| Voltage - Start Up | 23.6 V |
| Voltage - Supply (Vcc/Vdd) | 10.8V ~ 24V |
| Duty Cycle | 50% |
| Frequency - Switching | 25kHz ~ 1.25MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | EN, Frequency Control, Sync |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
| Mounting Type | Surface Mount |
MAX5068AAUE+ is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TEA18361T/1J | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 14SO | 92% | View |
| TEA18362LT/1J | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 8SO | 92% | View |
| TEA18362T/2J | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 8SO | 92% | View |
| TEA18362LT/2J | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 8SO | 92% | View |
| TEA18363LT/1J | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 8SO | 92% | View |
| TEA1721AT/N1,118 | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 7SOIC | 87% | View |
Submit your RFQ for MAX5068AAUE+ and get a quote within 24 hours.
