Analog Devices Inc./Maxim Integrated

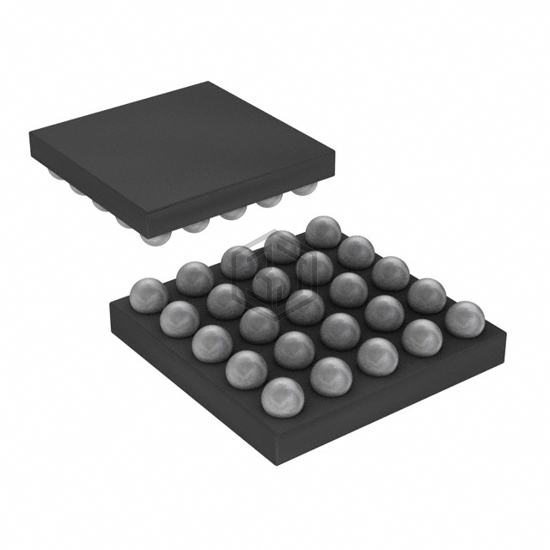

IC SWITCH HEX SPDT 25UCSP
MAX4948EBA+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH HEX SPDT 25UCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 25-WFBGA, CSPBGA, number of circuits 6.
In Stock: 7,908
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 6 |
| On-State Resistance (Max) | 5.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 800ns, 800ns |
| -3db Bandwidth | 300MHz |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 15pF |
| Current - Leakage (IS(off)) (Max) | 3nA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 25-WFBGA, CSPBGA |
| Supplier Device Package | 25-UCSP (2.54x2.54) |
MAX4948EBA+T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4948ETG+T | Analog Devices Inc./Maxim Integrated | IC SWITCH HEX SPDT 24TQFN | 100% | View |
| MAX4948ETG+ | Analog Devices Inc./Maxim Integrated | IC SWITCH HEX SPDT 24TQFN | 100% | View |
| MAX4948ERA+T | Analog Devices Inc./Maxim Integrated | HEX SPDT DATA SWITCH | 100% | View |
| MAX4947ETG+ | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE DPDT 24TQFN | 94% | View |
| MAX4947ETG+T | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE DPDT 24TQFN | 94% | View |
| SW06GSZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16SOIC | 55% | View |
Submit your RFQ for MAX4948EBA+T and get a quote within 24 hours.
